The rebuild, the plan
Learning to 3D model, pre-made STLs do not work
First print
First test after delid

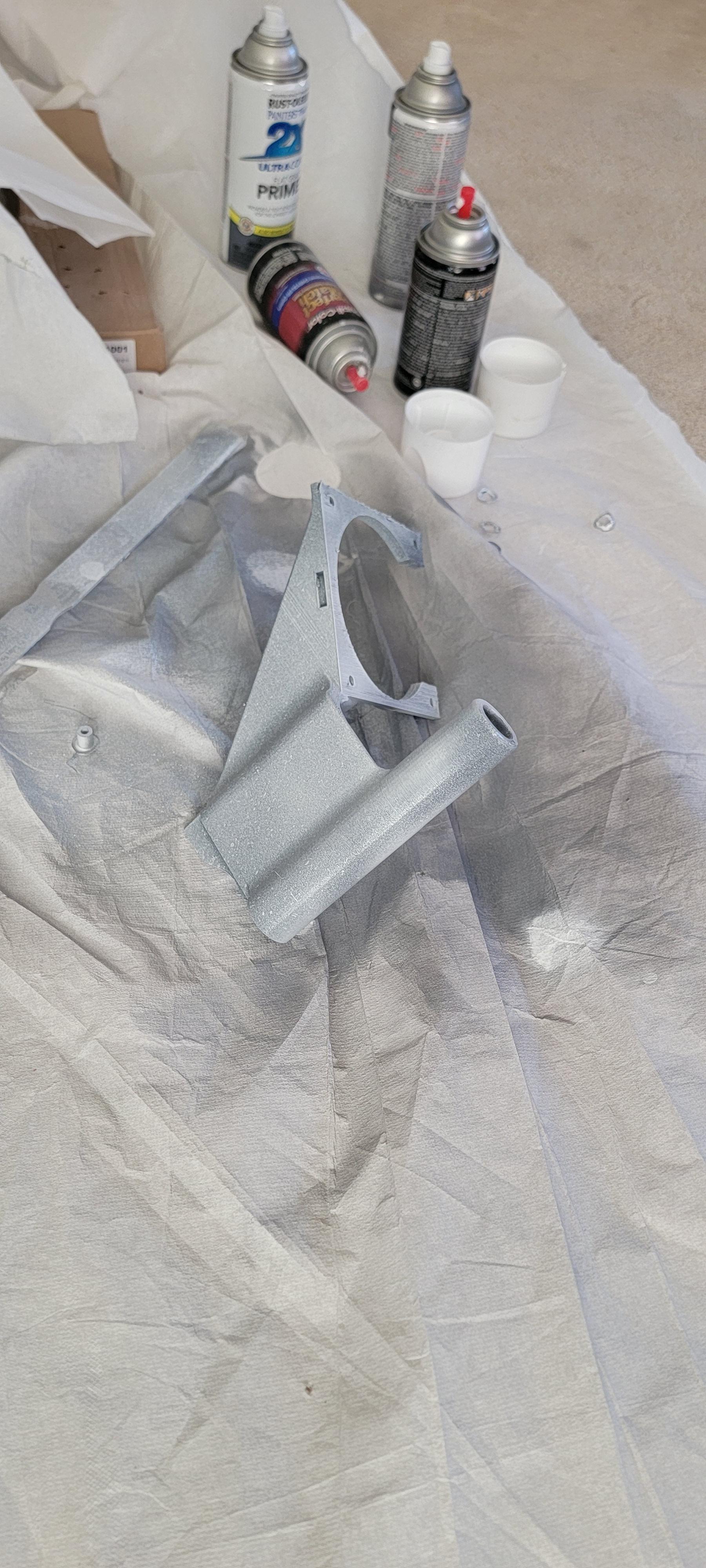

Spraying out
After paint
After delid
First liquid metal attempt
The beginning
Sanding and polishing the CPU die
Custom-made power supply cover
Top radiator bracket printed
Magnets to hold cover
System testing before build
Machining AM 4 block to fit AM 5
Test fit
Clearing up the acrylic
More paint
GPU blocking
Prior to Polish
Clearancing offset mounting and M.2 heatsink. Fixing z height
Coming together, mocking up bottom mount
Custom loom and shrink
Bottom mount
10 gig networking does not fit, modification needed
GPU test fit
Getting some help catching bugs
First bend
Tubes bent
First fill
Adding RGB to heat sinks
Ugh
The original build two years ago
First power on
Testing for leaks
More clearancing work needed
Testing spread pattern with normal thermal paste before liquid metal
Checking thermals
Second round of polishing
Third attempt at liquid metal

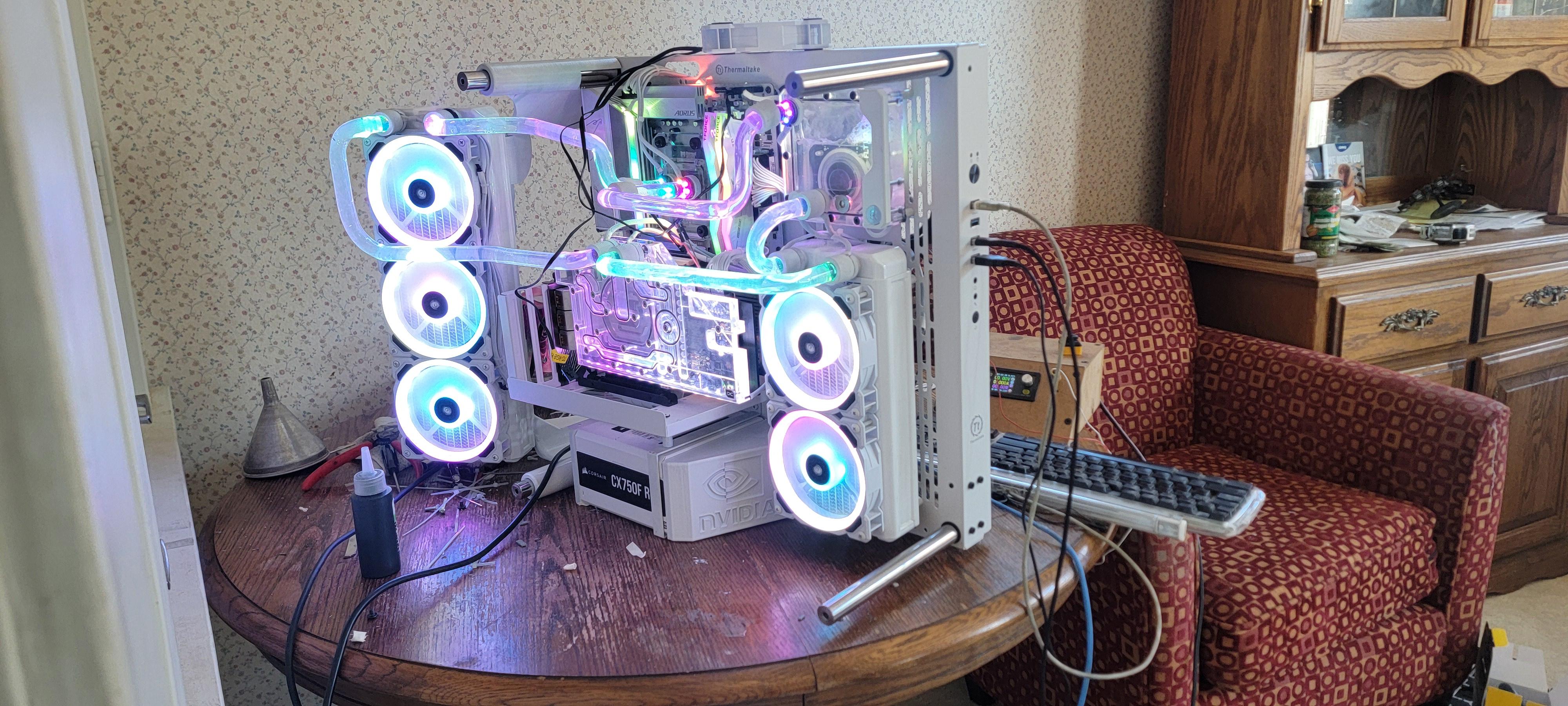

Bleeding air
Fully powered on
Back on the wall
Up and running
After tuning. Dead silent, 15% fan speed and 5.6 GHz all core. 32C coolant temp
Attritshun
Nice build. I could never delid but impressive results
acmobiledodge101
idk how much it matters. i know mounting was a pita. 20% pump speed, 5% fan speed, full load on GPU/CPU i sit at 48C GPU and 89C CPU at 5.65Ghz all core. ram cooling is maybe an issue - 28-36-36-42 6200Mhz at 1.39V but some stability issues as temps climb. about 6 hours into y crunch. still have tuning to do. also considering NVME gen5
discotheque42
That's a lot of time and effort. Nicely done.
acmobiledodge101
It took me a little over a week. Thanks
