Build Complete :
PC :
- CPU : Amd Ryzen 7 3800X stock FCLK 1800 MHz
- GPU : Evga RTX 2080ti FTW3 Ultra (Curve +60~ on GPU / +500 MHz on vRAM)
- RAM : G.Skill Trident-Z 3200CL14 @ 3600CL16
- MB : Msi X370 Gaming Pro Carbon
- SSD : HyperX Kingston Savage 240GB
- SSD : HyperX Kingston Savage 480GB
- NVME M.2 : Samsung 970 Evo 1TB
- PSU : Corsair HX850w (from 2009 and still kicking ass) + - CableMod Pro ModMesh custom sleeved cables
- CASE : Phanteks Evolv X + Stock Phanteks 140 fan for exhaust
Watercooling Parts :- CPU : Optimus PC Foundation Block
- GPU : Evga Hydro Copper RTX FTW3
- RAD : HardwareLabs Black Ice Nemesis GTS 360 x2
- FANS : Noctua Chromax NF-F12
- PUMP : EK XTOP Revo D5 PWM
- RES : Heatkiller Tube 150 + Multiport top
- CTRL + MON : Aquatuning OCTO + High-Flow Sensor + VISION Internal USB + 2 Water temp. + 2 Air temp.
- FLOW : Aquatuning High-flow sensor
- TUBING : Barrow Hard 16/12 Acrylic and Mayhem Soft 13/10 (drain, fill, and pump/flow meter)
- FITTINGS : Barrow mostly. A couple EK compression for soft and fill/drain port, and Aquatuning compression for flow meter and pass-through.
- COOLANT : EK Cryofuel Blood Red
Aquatuning OCTO Controller :
6 Fans
4 Temp sensors (2 Air / 2 Water) / One is missing on the picture, I found out while setting up aquasuite
Flow Sensor
Kingston HyperX Savage SSDs

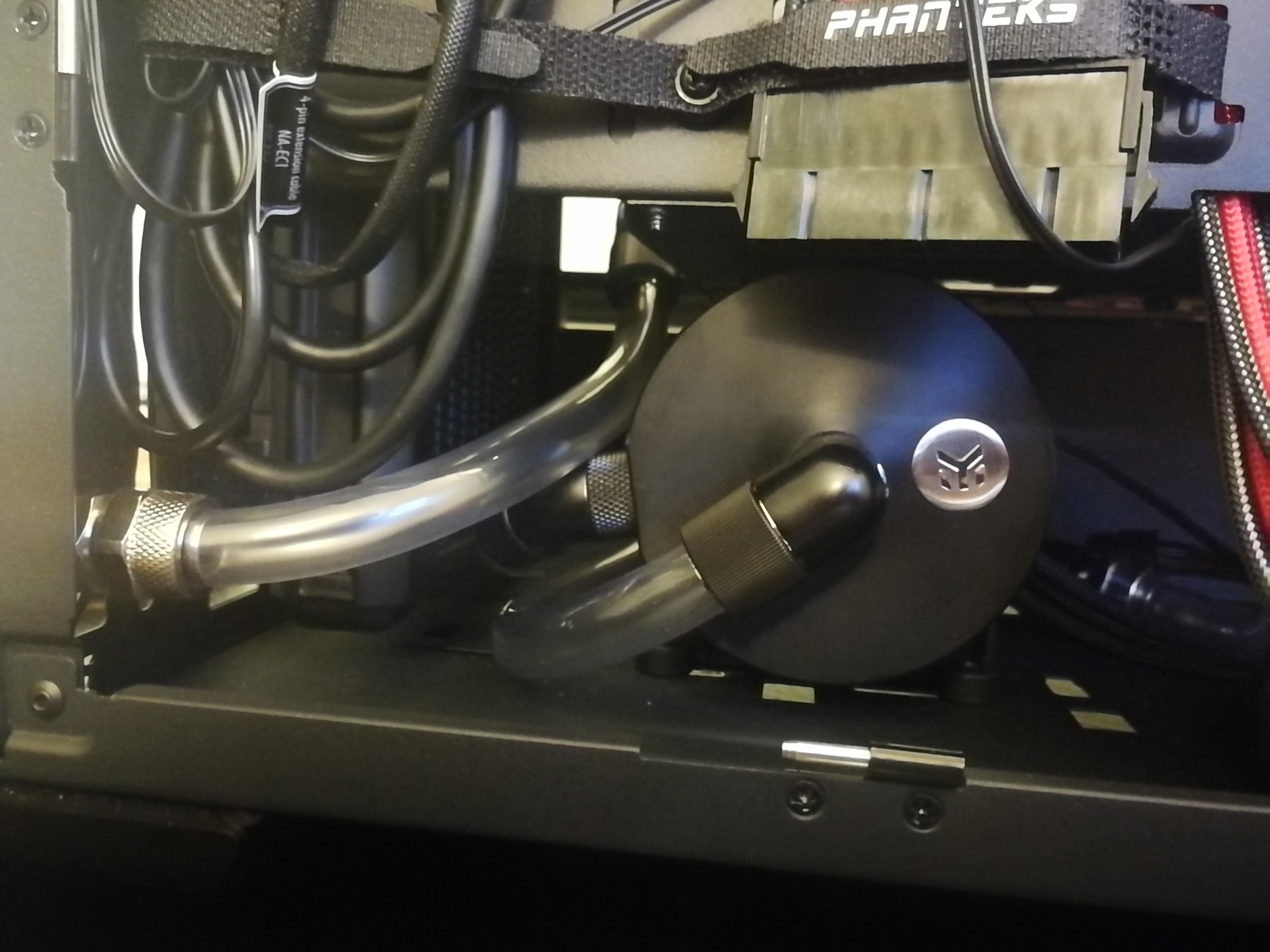

EK D5 Revo Pump + Drain Port
I had to redo the drain, as i didn't worked as expected on its first location. It's not perfect, but there were still a lot of liquid in the system when I redid this, so, functionality over aesthetics here !!
Built the last bit of tubing.
This was hard as hell due to the very small size, and extreme bend radius of this tube (front rad to res is 5 cm only)
Bends are not perfect, but for a first loop, and using 16/10 Acrylic, I think I did a good job nonetheless
Drain port at this location didn't work as expected. I had to change it after doing the first leak test. I didn't managed to drain complety, so I had to do all of this while there were a heck lot of coolant inside the system.
I realized it wasn't the lowest point in the system, it only drained the Res and partially the front rad.
Hidden plumbing
Computing and Plumbing done right !
Putting everything in place
Pressure release valve / Fill Port
Inline Temp sensor on the Rad outlet
High-flow sensor
Behind the scene plumbing : Pump and flow sensor (from rear view)
(2) Behind the scene plumbing : Pump and flow sensor (from front view)

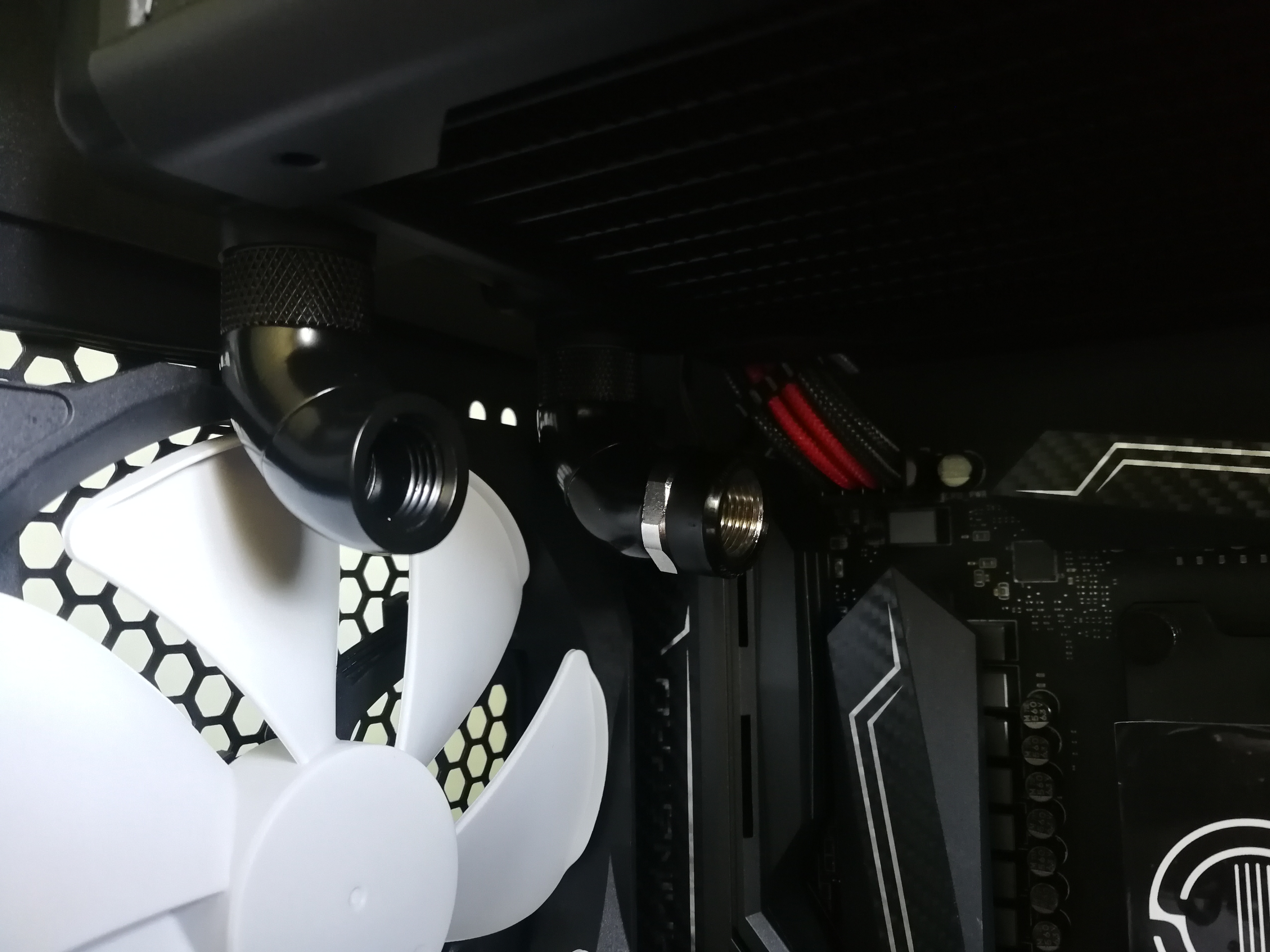

Res and pass-through ports installed
Drilled hole with a Dremel
Almost 2kg of pure horsepower / before dismantling
Naked chips
TU102-300A
Vape & Wine while mounting every pieces :)
Damn the HAF-X is big and ugly
Damn the HAF-X is big and ugly (2)
Cooking ? Nope ! Flushing rads :)
Finally, all parts have arrived !
R.I.P. my old setup
HAF-X with CM 240ML AIO (and still an Oculus Rift)
