Ono Sendai Cyberdeck V3

Many of the stickers are ones I used before and liked, but a few are new like the D10D3 logo that WolfCreative made for me. I used the same Cyberspace7 badge as last time, but made a new vertical Hosaka badge.#raspberry_pi #cyberdeck #cyberpunk

Working on cosmetics. The logos are test prints so the colors look bad but they were just for gauging size.
#raspberry_pi #cyberdeck #cyberpunk

#cyberpunk #cyberdeck #raspberry_pi

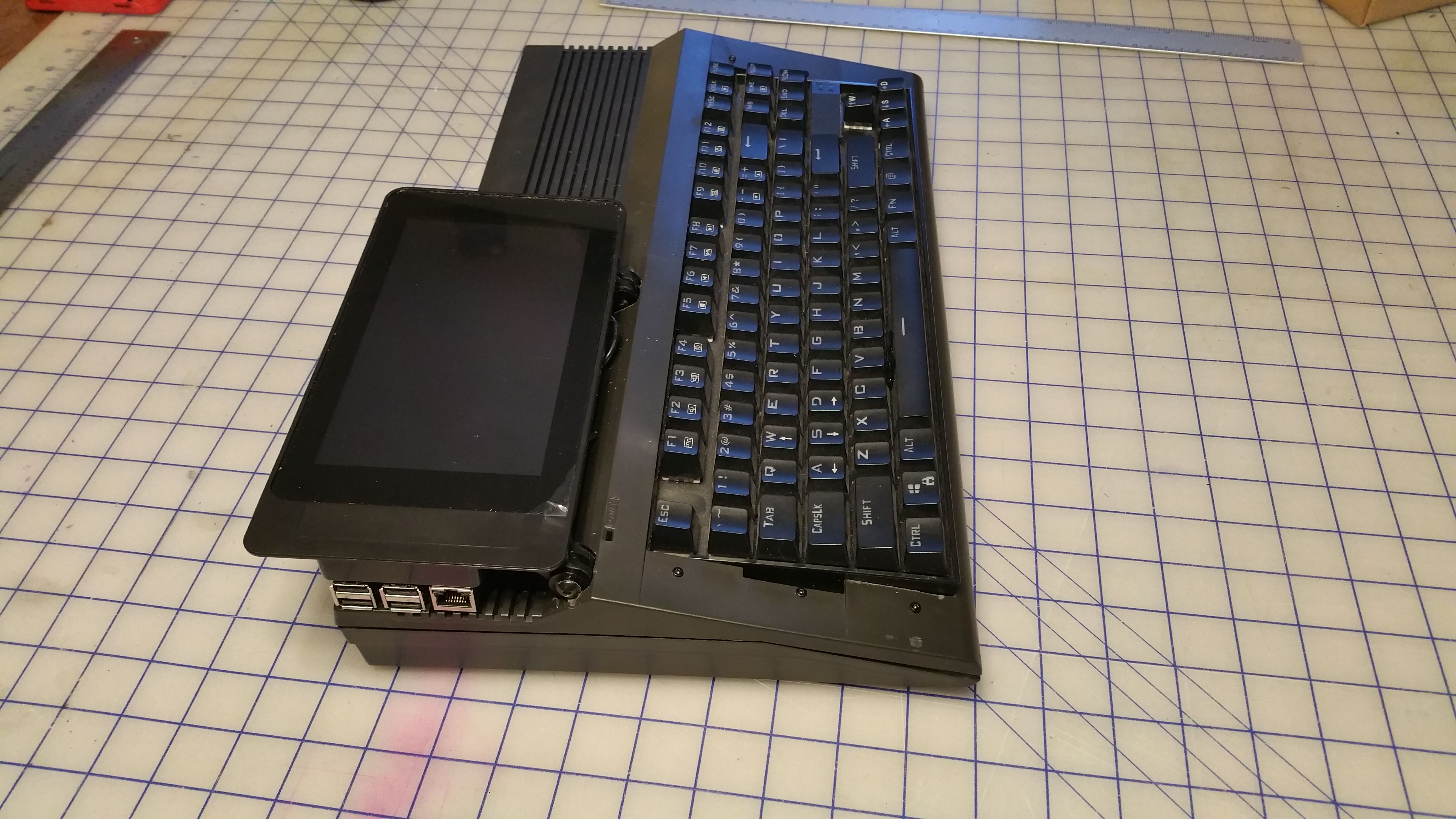

This is my 3rd Cyberdeck style computer build. The chassis is a reproduction Commodore 64c case. The logic board is a Raspberry Pi 3 Model B+. The screen is the official Raspberry Pi 7" capacitive touch screen, mounted along with the Pi in a Smarti-Pi Touch enclosure that is mounted to the chassis on a pair of friction pivots. The keyboard is a Red Dragon mechanical with Cherry MX Blue switches. The strap is connected via steel quick connect locking strap mounts. Power is provided by a 10,500 MaH USB battery.

The Smarti Pi Touch was perfect for mounting the screen an logic board and only required a little modification to fit my needs.

#cyberpunk #cyberdeck #raspberry_pi

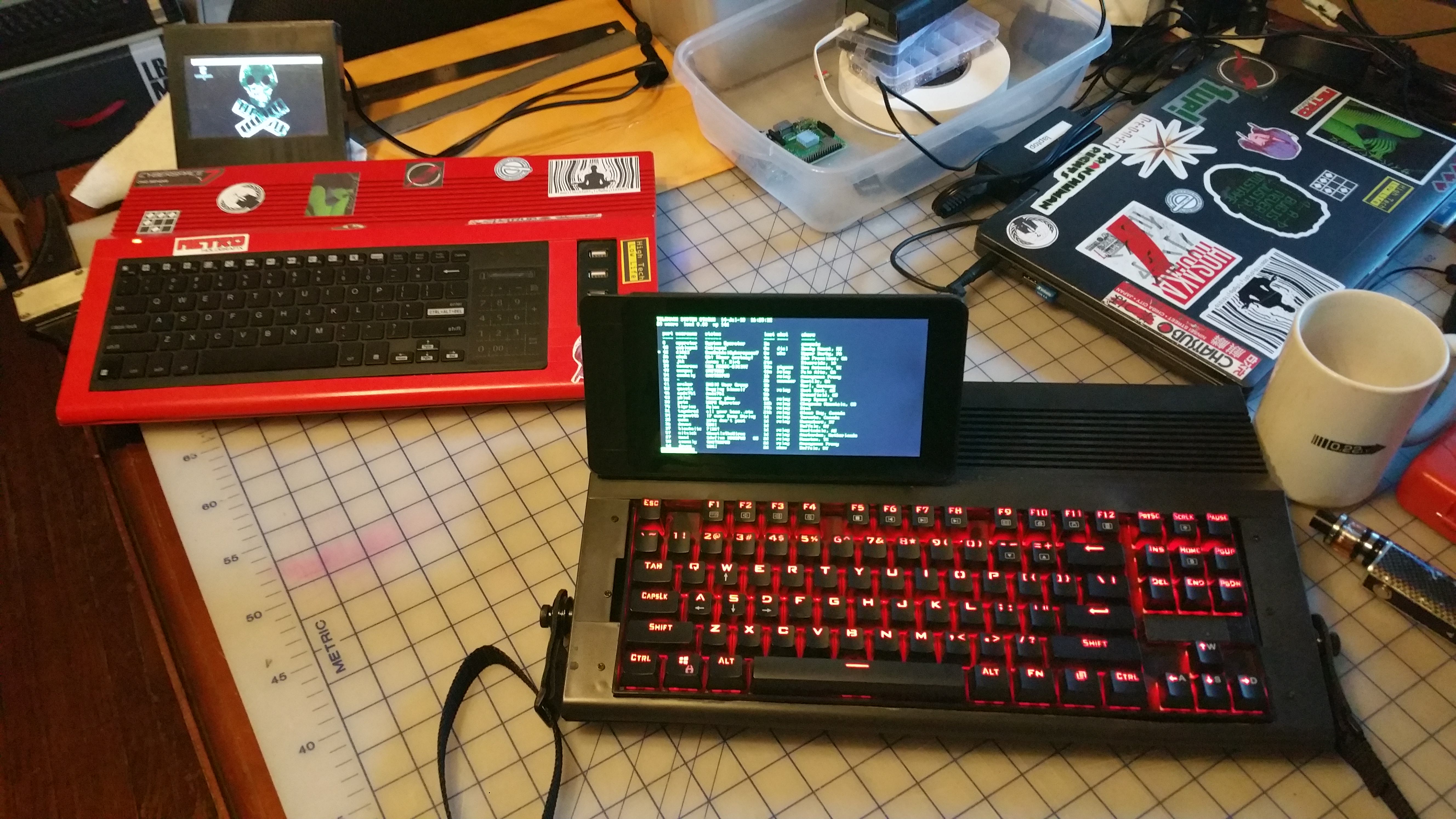

The 2018 V3 next to the V2 from 2017. Ole' Red is a lot flashier, but the screen wasn't nearly as good and the keyboard is terrible. The V3 is a pleasure to type on with it's Cherry MX Blue mechanical key switches.

The quick lock strap attachment is guitar hardware, coupled with a slim mandolin strap.

One of the reasons I built this was to have a dedicated machine for console hacking. Both real hacking and some fun times in Telehack.
