PI ZERO - VOLUMIO - DIY PWM output on pin 12-13

The whole thing. Yes the vynil is Rick Astley ;)

Jack 3.5mm is not connected since you can't ground the two negative output of the PAM. Speakers are directly connected to the 2 output of the PAM.

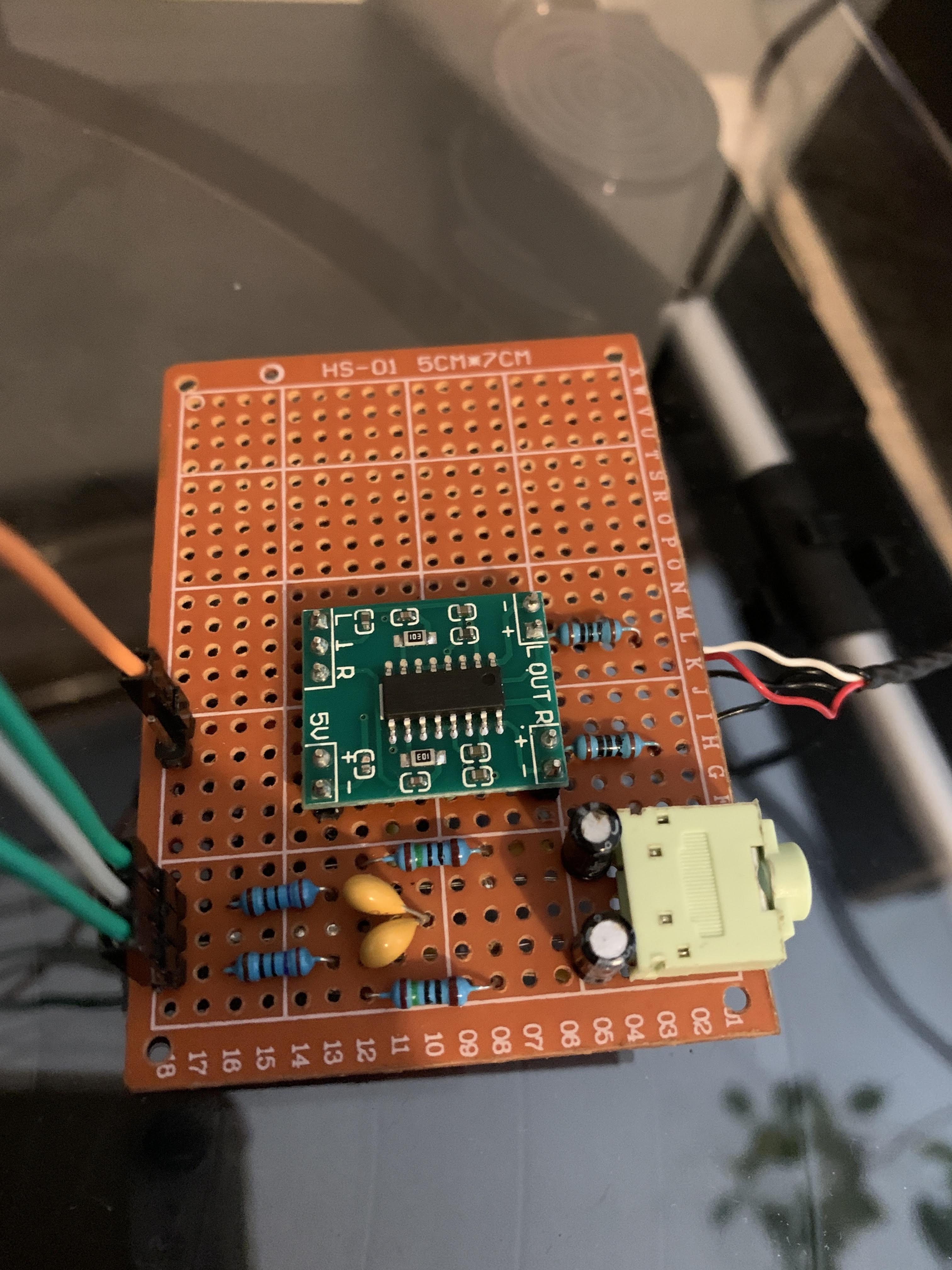

low and high filters before the PAM8403, 100 ohm resistor to the 2 positive output of the PAM to reduce noise a bit

I like those pi zero so much. Final goal is to output the sound via 2 RCA cables so i can play it on my HIFI system.
